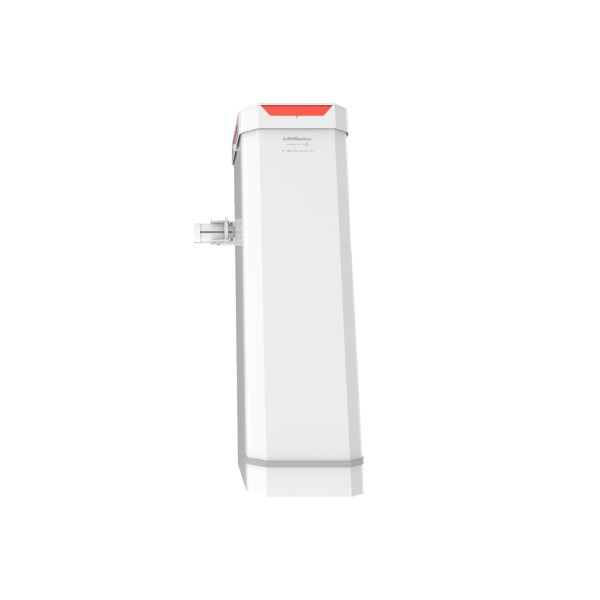

LiftMaster TECHNA CBG 14' Commercial DC Vehicular Automatic Barrier Arm Gate Opener (White) - CBG24DCWMC

The LiftMaster TECHNA Commercial/Community CBG Barrier Gate Opener is a new generation gate opener that excels at performance and can manage high-traffic areas. This all-in-one gate opener provides access to authorized visitors while preventing intruders from entering your community or facility. Allow 24/7 access to your residential community, commercial property, or distribution facility. This barrier gate opener has an LED tower, and breakaway arm technology and is UL-listed.

This Unit does NOT include a Barrier Arm

Key Features:

• White Model Ordering Number: CBG24DCW
• High-Speed Operation With Fast Open And Close Cycles
• Programmable LED Red and Green Lights Provide Increased Visibility
• Slow Start And Stop Operation
• Battery Backup Capable And Solar Kits Are Available
• Is Compatible With MyQ App
• Setup SAMS (Sequenced Access Management System) Or Other Vehicular Control Scenarios
• Shipped In Modular Pieces To Stop Damage During Transmit
• UL Listed For ANSI/CAN/UL325 Standard For USA/Canada And Now NOM/IFETEL Mexico Standards

Specifications:

• 24DC Brushless Continuous Duty Drive System
• 14 Ft. Of Maximum Lane Coverage
• Direct Drive System Includes Oil Bath Gearbox
• Removable Front Cover With Tilt-Up Top Cover
• Power: 120 AC/230AC 1 PH
• Accessory Power: 24DC 500mA Output With Switched And Unswitched Power
• Materials: Aluminum Housing With LED Top Cover
• Direct Plug-In Loop Detector (LOOPDETLM)
• Operating Temp No Heater: -4 Degrees F To 140 Degrees F
• Operating Temp With Heater: -40 Degrees F To 140 Degrees F

Kit Contains:

• Operator
• Springs
• 7Ah Batteries

Compatible Barrier Arms

• LiftMaster 12 Foot Long Articulated Arm For TECHNA CBG and PBG Barrier Arm Openers (98 Inch Max Opening Clearance)
• LiftMaster 10 Foot Long Articulated Arm For TECHNA CBG and PBG Barrier Arm Openers (98 Inch Max Opening Clearance)
• LiftMaster 12 Foot Long Articulated Arm For TECHNA CBG and PBG Barrier Arm Openers (84 Inch Max Opening Clearance)
• LiftMaster 10 Foot Long Articulated Arm For TECHNA CBG and PBG Barrier Arm Openers (84 Inch Max Opening Clearance)
• LiftMaster 14 Foot Long Modular LED Barrier Arm For TECHNA CBG Barrier Arm Openers
• LiftMaster 12 Foot Long Modular LED Barrier Arm For TECHNA PBG Barrier Arm Openers
• LiftMaster 10 Foot Long Modular LED Barrier Arm For CBG and PBG TECHNA Barrier Arm Openers
• LiftMaster 14 Foot Long Modular Barrier Arm For TECHNA CBG Barrier Arm Openers
• LiftMaster 12 Foot Long Modular Barrier Arm For TECHNA CBG and PBG Barrier Arm Openers
• LiftMaster 10 Foot Long Modular Barrier Arm For TECHNA CBG and PBG Barrier Arm Openers
