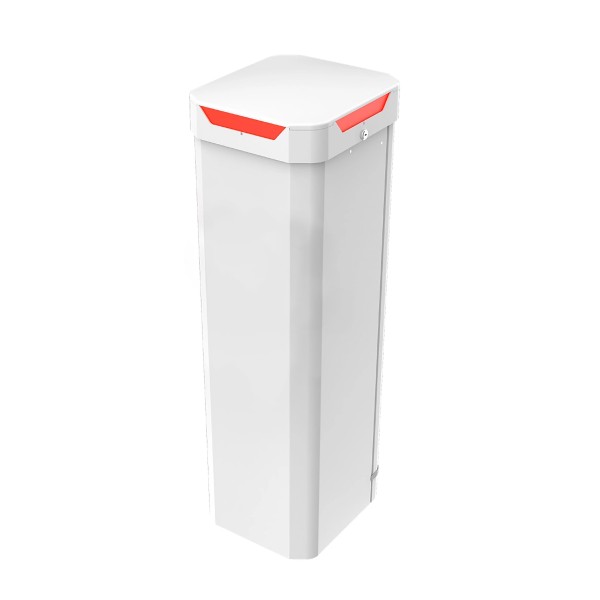

LiftMaster TECHNA PBG Parking DC High-Speed Automatic Barrier Arm Gate Opener (White) - PBG24DCWMC

The LiftMaster TECHNA PBG Barrier Gate Opener offers advanced management for busy entrances, ensuring secure, round-the-clock access with its LED tower and breakaway arm features, perfect for multiple property types.

Part Number: PBG24DCWMC
$2,427.57 each
$2,427.57 each
OR
Quantity Price Each
  1+$2,427.57
  64+$2,354.75

Details

LiftMaster TECHNA PBG Parking DC High-Speed Automatic Barrier Arm Gate Opener (White) - PBG24DCWMC

The LiftMaster TECHNA Parking/High-Speed PBG Barrier Gate Opener is ideal for parking management and can enhance the speed of traffic flow at your property to increase revenue. This barrier gate opener has hardware that is easy to maintain. The connected software provides visibility at a parking structure or lot. This barrier gate opener has an LED tower, and breakaway arm technology and is UL-listed. This is the barrier gate opener you need if you are a parking manager.

Key Features:

  • White Model Ordering Number: PBG24DCW
  • High-Speed Operation With Fast Open And Close Cycles
  • Programmable LED Red and Green Lights Provide Increased Visibility
  • Slow Start And Stop Operation
  • Battery Backup Capable
  • Is Compatible With myQ App
  • Setup SAMS (Sequenced Access Management System) Or Other Vehicular Control Scenarios
  • Shipped In Modular Pieces To Stop Damage During Transmit
  • Innovative Counterbalance System (Just Place Springs Internally On A Shaft)
  • UL Listed For ANSI/CAN/UL325 Standard For USA/Canada And Now NOM/IFETEL Mexico Standards

Specifications:

  • 24VDC Brushless Continuous Duty Drive System
  • 12 Ft. Of Maximum Lane Coverage
  • Direct Drive System Includes Oil Bath Gearbox
  • Removable Front Cover With Tilt-Up Top Cover
  • Power: 120 VAC/230VAC 1 PH
  • Accessory Power: 24VDC 500mA Output With Switched And Unswitched Power
  • Materials: Aluminum Housing With LED Top Cover
  • Direct Plug-In Loop Detector (LOOPDETLM)
  • Operating Temp No Heater: -4 Degrees F To 140 Degrees F
  • Operating Temp With Heater: -40 Degrees F To 140 Degrees F

Kit Contains:

  • Operator
  • Springs
  • 7Ah Batteries

View Compatible Barrier Arms

Standard Modular Barrier Arms | LED Modular Barrier Arms | Articulated Modular Barrier Arms


TECHNA PBG Brochure

SKU PBG24DCWMC
Alternate Part Number PBG24DCW, PBG24DCG
Max Arm Length 12 ft.
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase)
Solar Compatible Yes
Mounting Type Pad Mount
Code Type Compatibility Security+ 2.0
UL Usage Classification I, II, III, IV
Series Techna PBG
Manufacturer LiftMaster
