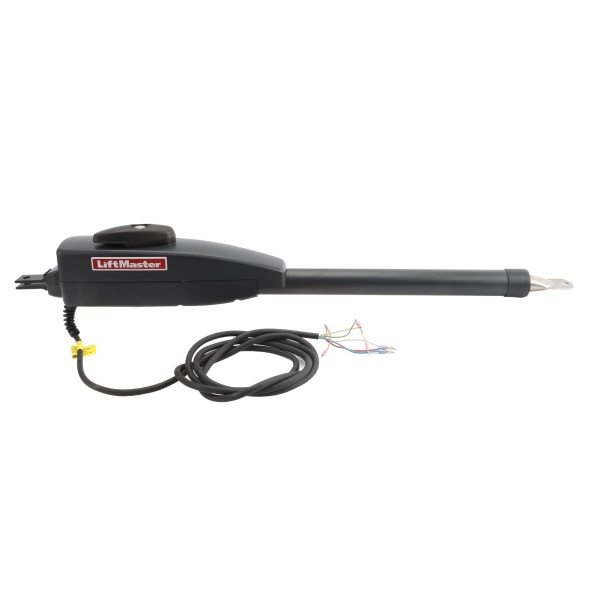

LiftMaster Residential 24VDC Primary Actuator Swing Gate Opener Arm - LA400DC
Details
LiftMaster Residential 24VDC Primary Actuator Swing Gate Opener Arm - LA400DC
The residential 24DC primary arm LA400DC is new and improved, offering superior performance. With the MyQ app, you can control and monitor your gate from anywhere in the world. This gate opener arm is for gates up to 16 feet and 850 pounds. Plus, since the LiftMaster LA400DC actuator follows the most stringent UL 325 industry guidelines, you can rest assured that your gate will follow protocol when installed with the proper photo-eye.
To improve things, the heavy-duty cast-aluminum housing DC motor is powerful and has a soft start/stop operation. Since this system is solar-ready and can be installed with not included solar panels, you may qualify for an additional 22% solar tax credit. If you're looking for a reliable swing gate opener that uses the latest technology, the LiftMaster LA400DC compatible swing gate opener is the right operator for you.
LiftMaster warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of TWO years from the date of purchase. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance, and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety. You can check the warranty here!
Key Features:
- Safety Inputs Ready For Safety Reversing Devices
- Works With Gates Up To 16 Ft. In Length And Weights Up To 850 Pounds
- UL/cUL Listed
- Can Use With MyQ Mobile App
- Heavy-Duty Cast Aluminum Housing DC Motor
To Convert into a Solar Unit
The 40W33A, which includes:
- (2) SP20W12V Solar panels with Mounting Hardware
- (2) K94-37236 Solar Adapter Harness Kits
- (2) A12330SGLPK 33Ah batteries
See the image below to see the recommended weight when it comes to the length of the arm
You may also need (2) K10-36183 battery trays and a LA500CONTXLMUL Solar Control Box.
| SKU | LA400DC |
|---|---|
| Max Gate Length | 16 ft. |
| Max Gate Weight | 850 lbs. |
| Solar Compatible | Yes |
| Product Type | Primary Actuator Arm |
| Operator Site Plan | Download PDF file |
| Troubleshooting Guide | Download PDF file |
| Wiring Guide | Download PDF file |
| Opener Type Compatibility | Gate |
| Motor | 24VDC Motor |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Code Type Compatibility | Security+ 2.0 315MHz |
| UL Usage Classification | I, II, III, IV |
| Manufacturer | LiftMaster |
| MyQ Compatibility | Yes |
| Manual | Download PDF file |
| Start Guide | Download PDF file |
| Product Drawing | Download PDF file |
