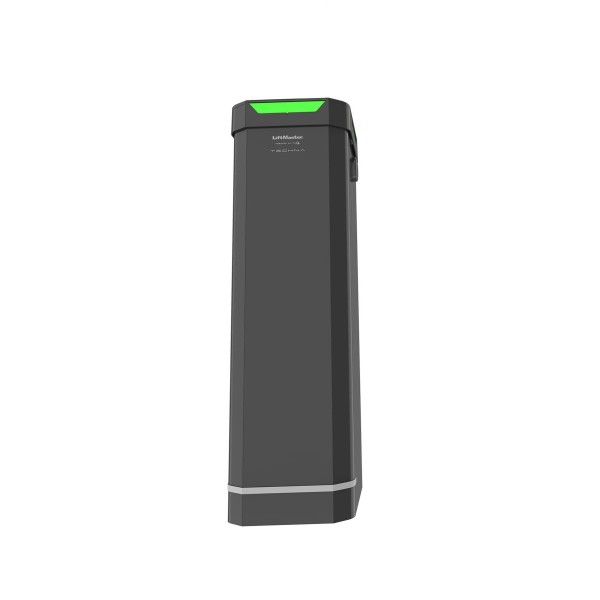

LiftMaster TECHNA CBG Commercial DC Vehicular Automatic Barrier Arm Gate Opener (Gray) - CBG24DCGMC
Details
LiftMaster TECHNA CBG Commercial DC Vehicular Automatic Barrier Arm Gate Opener (Gray) - CBG24DCGMC
The LiftMaster TECHNA Commerical/Community CBG Barrier Gate Opener is a new generation gate opener that excels at performance and can manage high-traffic areas. This all-in-one gate opener provides access to authorized visitors while preventing intruders from entering your community or facility. Allow 24/7 access to your residential community, commercial property, or distribution facility. This barrier gate opener has an LED tower, and breakaway arm technology and is UL-listed.
Key Features:
- Gray Model Ordering Number: CBG24DCG
- High-Speed Operation With Fast Open And Close Cycles
- Programmable LED Red and Green Lights Provide Increased Visibility
- Slow Start And Stop Operation
- Battery Backup Capable And Solar Kits Are Available
- Is Compatible With myQ App
- Setup SAMS (Sequenced Access Management System) Or Other Vehicular Control Scenarios
- Shipped In Modular Pieces To Stop Damage During Transmit
- UL Listed For ANSI/CAN/UL325 Standard For USA/Canada And Now NOM/IFETEL Mexico Standards
Specifications:
- 24VDC Brushless Continuous Duty Drive System
- 14 Ft. Of Maximum Lane Coverage
- Direct Drive System Includes Oil Bath Gearbox
- Removable Front Cover With Tilt-Up Top Cover
- Power: 120 VAC/230VAC 1 PH
- Accessory Power: 24VDC 500mA Output With Switched And Unswitched Power
- Materials: Aluminum Housing With LED Top Cover
- Direct Plug-In Loop Detector (LOOPDETLM)
- Operating Temp No Heater: -4 Degrees F To 140 Degrees F
- Operating Temp With Heater: -40 Degrees F To 140 Degrees F
Kit Contains:
- Operator
- Springs
- 7Ah Batteries
View Compatible Barrier Arms
Standard Modular Barrier Arms | LED Modular Barrier Arms | Articulated Modular Barrier Arms
| SKU | CBG24DCGMC |
|---|---|
| Alternate Part Number | CBG24DCG |
| Max Arm Length | 14 ft. |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Solar Compatible | Yes |
| Mounting Type | Pad Mount |
| Code Type Compatibility | Security+ 2.0 |
| UL Usage Classification | I, II, III, IV |
| Series | Techna CBG |
| Manufacturer | LiftMaster |
