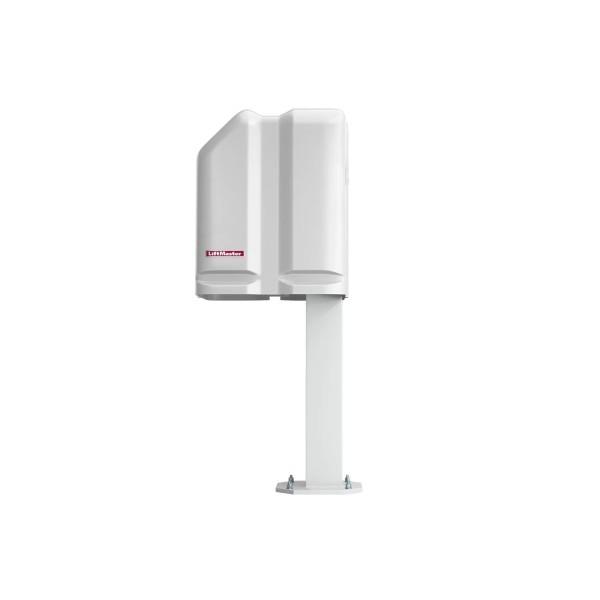

LiftMaster Heavy-Duty Parking Lot Barrier Arm Gate Operator 1/2HP 115V 1P - MADCBB3
Details
LiftMaster Heavy-Duty Parking Lot Barrier Arm Gate Operator 1/2HP 115V 1P - MADCBB3
This heavy-duty commercial-grade arm barrier gate operator is made with the latest technology and uses an electronic control board to ensure everything works as intended. An included heavy-duty DC motor lets you perform the most demanding task, and the included battery backup keeps the arm barrier gate operator working even when power is down.
The magnetic limit sensors are created for high-cycle applications whether your operator is functioning in a parking lot or security entrance. This unit is fire-department compliant and has a multi-vehicle memory feature that continuously leaves a barrier arm open when preauthorized vehicles attempt to pass through. When used with a breakaway arm, if this part is hit, your operator stays safe, and you will only need to purchase another barrier arm.
Specifications:
- Power: 120V Or 220V Optional
- UL 325 And UL 991 Compliant Class: I, II, III, And IV
- Can Work With 9 to 17-Foot Arm Length
- Maximum Cycle Capacity: 6,000 Cycles Per Day
- 10-Year Manufacturer Warranty For Aluminum Frame And 2 Years For Parts
- Gear Reduction: 60:1 In Synthetic Oil Bath
Key Features:
- Easy-To-Access 110V Outlet
- Universal Controller Has 8 Inputs
- Can Be Operated From The Right Or Left Hand
- 850 LM Radio Receiver
- Made With State-Of-The-Art Engineering Technology
Optional Accessories:
- LiftMaster Smart Video Intercom : Access Controlled Video Intercom Using MyQ App
- LiftMaster Smart Access, 2-Door Controller : 2 Door Access Control System Utilizing MyQ App
| SKU | MADCBB3 |
|---|---|
| Max Arm Length | 17 ft. |
| Cycle Speed | 2.5 sec. |
| Operator Duty Rating | 6000 Cycles/Day |
| Horsepower | 0.5 HP |
| Motor | 24VDC Motor |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Mounting Type | Pad Mount |
| Code Type Compatibility | Security+ 315MHz |
| UL Usage Classification | I, II, III, IV |
| Series | MA |
| Manufacturer | LiftMaster |
