LiftMaster Secondary Swing Gate Opener Actuator Arm - Solar Compatible - LA412DCS
Details
LiftMaster Secondary Swing Gate Opener Actuator Arm - Solar Compatible - LA412DCS

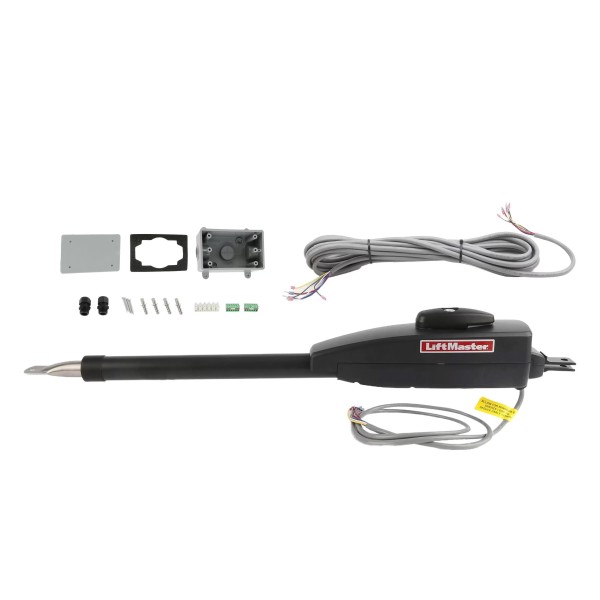

The LiftMaster LA412DCS is the secondary actuator arm for dual swing gate applications, designed to work in tandem with the LA412DC primary actuator. It operates on 12V DC power and supports solar charging, making it an energy-efficient solution for residential properties. Built for durability, reliability, and safety, the LA412DCS integrates seamlessly with LiftMaster's MyQ and Security+ 2.0 technology for remote access and security enhancements.
Features:
- Dual Gate Operation: Designed to function as a secondary arm in conjunction with the LA412DC primary actuator.
- Solar-Ready & Battery-Powered: Operates on a 12V DC battery system with optional solar panel compatibility.
- Quiet & Efficient Performance: Linear actuator provides smooth, consistent movement.
- MyQ Remote Monitoring: Compatible with LiftMaster's smart control systems for remote access.
- Security+ 2.0 Encryption: Enhanced wireless security and protection against signal interference.
- Integrated Safety System: Works with monitored entrapment protection devices to meet UL 325 safety standards.
- Weather-Resistant Construction: Built to withstand harsh outdoor conditions.
Specifications:
- Power Source: 12V DC Battery (Solar Compatible)
- Maximum Gate Weight: 850 lbs (385.6 kg) per leaf
- Maximum Gate Length: 16 ft (4.9 m) per leaf
- Opening Speed: 90-degree travel time in under 23 seconds
- Maximum Travel Range: 115 degrees
- Operating Temperature: -4 Degrees F to 140 Degrees F (-20 Degrees C to 60 Degrees C)
- Cycle Rate: Up to 50 cycles per day
- Entrapment Protection: Requ'res monitored safety devices
- Compatible Primary Actuator: LiftMaster LA412DC
To Convert into a Solar Unit
The 40W33A, which includes:
SKU | LA412DCS |
---|---|
Max Gate Length | 16 ft. |
Max Gate Weight | 850 lbs. |
Solar Compatible | Yes |
Product Type | Secondary Actuator Arm |
Motor | 12VDC Motor |
Actuator Voltage | 12 DC, 24 DC |
Code Type Compatibility | Security+ 2.0 |
UL Usage Classification | I, II, III, IV |
Manufacturer | LiftMaster |
MyQ Compatibility | Yes |
Manual | Download PDF file |
Start Guide | Download PDF file |
Product Drawing | Download PDF file |
