Details

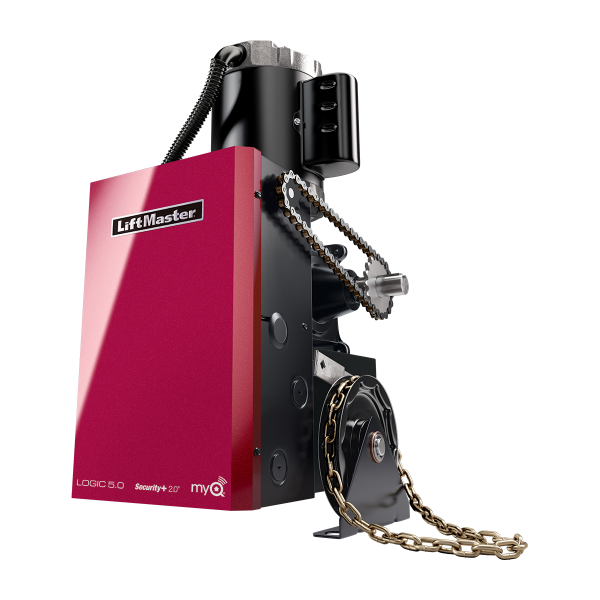

LiftMaster Carwash Hoist Opener L5 Left Handed 3/4 HP 575V 3-Phase for Door Opener Systems - CGH755L5L-MC

The LiftMaster CGH755L5L-MC is a 3/4 HP left-hand GH-style hoist Opener built for carwash doors that demand high-frequency performance and rugged durability. Operating on 575V 3-phase power, it's equipped with Logic 5.0 controls and supports MyQ Smart Facility Access. The system provides real-time door activity, remote diagnostics, and access insights. A floor-level chain hoist is included for manual operation during outages.

Features

• GH-style left-hand hoist for vertical/high-lift doors
• Logic 5.0 with built-in diagnostics and access management
• Designed for wet, high-traffic environments
• Emergency chain hoist for manual override

Specifications

• Motor Power: 3/4 HP
• Voltage: 575V
• Phase: Three
• Orientation: Left-hand
• Mounting: Wall or hood

Includes

• 02-103L 3-Button Station
• CPS-U Commercial Photo-Eye

Please Contact Us to specify the following when placing your order:

• Door Type: Rolling, Sectional
• Door Height: 8ft, 10ft, 12ft, 14ft, 16ft, 18ft, 20ft, 22ft, 24ft, 26ft, 28ft, 30ft, 32ft, 34ft, 36ft
• High Lift (Sectional Doors Only): 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft, 8ft, 9ft, 10ft
• Keyway Size: 1/4" (Standard), 32 Teeth 1/4", 3/8", 5/16", 1/2", 3/4", 1 1/4" Upgrade, 3/8" Upgrade, 1/2" Upgrade
• Shaft Size: 1", 1 1/4", 1 3/8", 1 1/2", 1 3/4", 2", 3"
