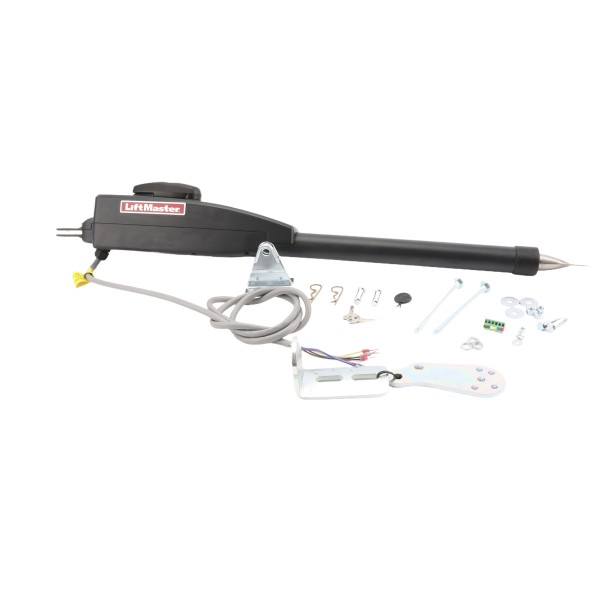

LiftMaster Primary Swing Gate Opener Actuator Arm - Solar Compatible - LA412DC
Details
LiftMaster Primary Swing Gate Opener Actuator Arm - Solar Compatible - LA412DC
The LiftMaster LA412DC is a premium 12V DC linear actuator designed for residential single swing gate applications. It is solar-capable, making it an ideal choice for locations without access to AC power. This gate opener ensures smooth, reliable operation and is compatible with MyQ and Security+ 2.0 accessories for remote monitoring and control. Its integrated safety features include inherent and external monitored entrapment protection, meeting UL 325 safety standards. The LA412DC is engineered for long-lasting durability and seamless integration with LiftMaster's control systems.
Features:
- Solar-Ready Design: Operates on a 12V DC battery system, compatible with solar panels (10W-30W).
- Quiet & Smooth Operation: Linear actuator ensures silent, fluid motion for residential gates.
- MyQ Compatibility: Remote access control via LiftMaster's MyQ technology.
- Security+ 2.0: Enhanced security features for encrypted, reliable remote operation.
- Integrated Safety Features: Includes dual-sensor entrapment protection (photoelectric & edge sensors requ'red).
- Durable Construction: Weather-resistant build for long-lasting performance.
- Backup Battery Operation: Ensures continued functionality during power outages.
- Expandable System: Compatible with secondary actuator (LA412DCS) for dual gate operation.
Specifications:
- Power Source: 12V DC Battery with Solar Charging Capability
- Maximum Gate Weight: 850 lbs (385.6 kg)
- Maximum Gate Length: 16 ft (4.9 m)
- Opening Speed: 90-degree travel time in under 23 seconds
- Maximum Travel Range: 115 degrees
- Operating Temperature: -4 Degrees F to 140 Degrees F (-20 Degrees C to 60 Degrees C)
- Cycle Rate: Up to 50 cycles per day
- Entrapment Protection: Inherent & external monitored sensors required
- Control Box: Standard LiftMaster Control Board with Expansion Options
To Convert into a Solar Unit
The 40W33A, which includes:
| SKU | LA412DC |
|---|---|
| Max Gate Length | 16 ft. |
| Max Gate Weight | 850 lbs. |
| Solar Compatible | Yes |
| Product Type | Primary Actuator Arm |
| Motor | 12VDC Motor |
| Actuator Voltage | 12 DC, 24 DC |
| Code Type Compatibility | Security+ 2.0 315MHz |
| UL Usage Classification | I, II, III, IV |
| Manufacturer | LiftMaster |
| MyQ Compatibility | Yes |
| Manual | Download PDF file |
| Start Guide | Download PDF file |
| Product Drawing | Download PDF file |
