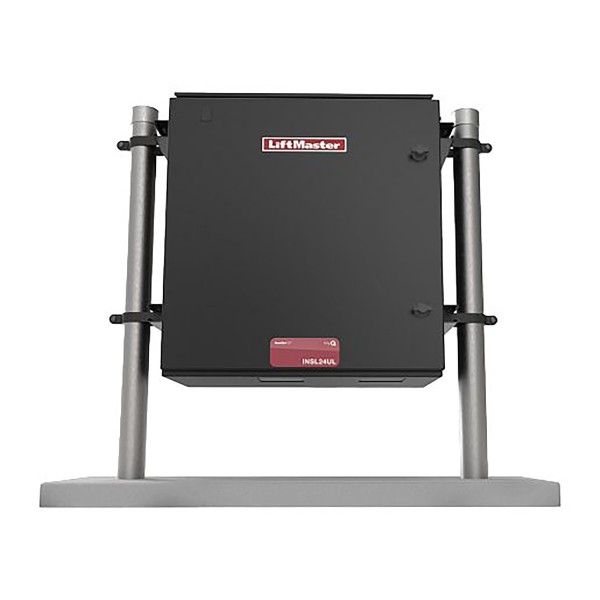

LiftMaster Industrial Slide Gate Opener - Single Phase, 5500lbs, With Photo Eye & Edge Kit - IHSL24UL

Use this heavy-duty industrial gate operator with gates weighing up to 5,500 pounds. This heavy-duty gate opener is made with an all-weather cabinet that protects the motor from dust, rodents, and any other outdoor elements. The helpful photo eye and edge kit included with the IHSL24UL gate opener provides a UL-compliant gate setup.
Part Number: IHSL24UL
$3,182.55 each
$3,182.55 each
OR


Details

LiftMaster Industrial Slide Gate Opener - Single Phase, 5500lbs, With Photo Eye & Edge Kit - IHSL24UL

A photo eye and edge kit are included with this practical, heavy-duty gate operator to finish your gate system. The IHSL24UL heavy-duty industrial gate opener is a gate operator that can handle gates weighing up to 5,500 pounds. However, just because it's a commercial gate opener doesn't mean maintenance will be difficult. This gate operator can run continuously without maintenance because of its continuous-duty motor, watertight enclosure, and 14-gauge steel construction.

You never have to worry about your gate operator breaking down when the power goes out thanks to the integrated battery backup that offers standby power. When a monitored safety protection device—like photo eyes or edge sensors—is present, the product is UL-listed. You can utilize the same placement and installation process for this operator as you would for the SL595 and SL585. The INSL24UL is a fantastic option if you're searching for an industrial gate opener with a 5-year manufacturer guarantee that won't break.

Specifications:

  • 120/240V Single Phase Power
  • Solar-Ready System
  • Chassis: Made With ¼ In. Steel, Powder Coated
  • Housing: Powder-Coated, 14-Gauge Steel In Oil-Tight Weatherproof Nema 3R Lockable Cabinet
  • UL Classification: I, II, III, And IV
IHSL24UL Capacity Chart

Key Features:

  • Reversing Sensor To Reverse Gate If Obstruction
  • Homelink Compatible
  • Monitored Safety Inputs: 3 Main Board And 3 Extra Expansion Board
  • Manual Disconnect Allows Gate To Open Manually When Released
  • Gate Speed: 0.5 Ft. To 1 Ft. Per Second
  • 4 Relays To add Additional Features
  • Includes Photo Eye And Edge Kit With Gate Operator

To Convert into a Solar Unit

The 40W33A, which includes (2) SP20W12V solar panels with mounting hardware, (2) K94-37236 solar adapter harness kits, and (2) A12330SGLPK 33Ah batteries.

You may also need (2) K10-36183 battery trays.

Check your Owner's Manual for Solar Zone and Solar Panel Application Requirements



Retrofit Product Guide

Brochure

Data Sheet

Owners Install Manual

Product Guide

Wiring Diagram

Name LiftMaster Industrial Slide Gate Opener - Single Phase, 5500lbs, With Photo Eye & Edge Kit - IHSL24UL
SKU IHSL24UL
Alternate Part Number IHSL24ULMC
Max Gate Weight 5500 lbs.
Operator Duty Rating Continuous Duty
Motor 24VDC Brushless Motor
Cycle Speed 0.5 ft. /sec. - 1 ft. /sec.
Compatible Remotes 50 Remotes
UL Usage Classification II, III, IV
Code Type Compatibility Security+ 2.0
Solar Compatible Yes
Manufacturer LiftMaster
MyQ Compatibility Yes
Price $3,182.55
