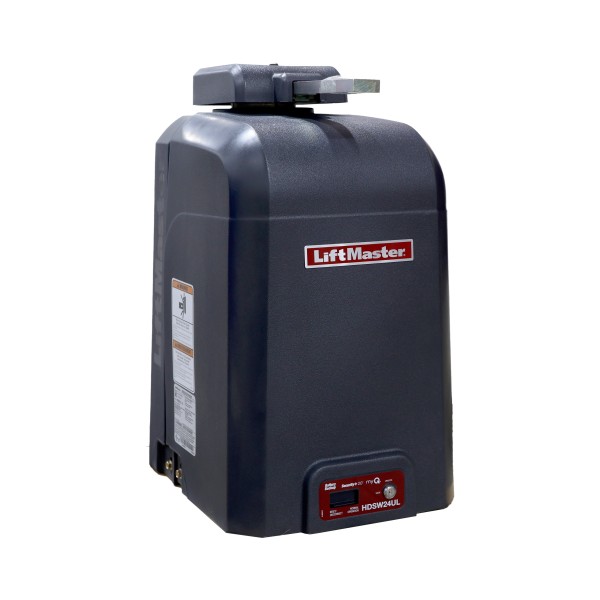

LiftMaster Commercial Swing Gate Opener - 1.5HP, 24VDC, 120/240 VAC Single Phase, With Photo Eye - HDSW24UL
Details
LiftMaster Commercial Swing Gate Opener - 1.5HP, 24VDC, 120/240 VAC Single Phase, With Photo Eye - HDSW24UL
The 24VDC HDSW24UL is a heavy-duty variable speed swing gate operator resistant enough to handle heavy gates and other extreme applications. This gate operator can handle gates of up to 4,500 feet long when used with optimal arm-HDLGARM or gates of 22 feet long with the standard arm. The gate operator has a custom heavy-duty gearbox that includes a direct drive of 1,600:1 gear ratio. Use the myQ app to control your gate from your mobile phone.
This UL-listed operator has an additional LMRRUL-monitored retro-reflective photo eye that includes a header and wide beam with a range of 50 feet. A neat feature called the Posilock enables you to close the gate when pushed from the closed position automatically. Plus, the quick close and standard anti-tailgate options stop unauthorized access from trespassers on your commercial property. With a variable cycle speed that works as fast as 13 to 36 seconds, this gate opener opens at 90 degrees in a range of those customizable speeds.
Specifications:
- 24VDC Brushless Continuous-Duty Motor
- Included LMRRUL Photo Eye
- Operator Duty Rating: High-Cycle and High-Temperature Continuous-Duty
- Chassis Is Created From 1/4 In. Powder-Coated, Steel
- Cover Is Made From High-Density, UV-Resistant PolyethyleneTo Resist Corrosion And Heat
Key Features:
- When Used With Heater Can Resist Temperatures Up To -40°F To 140°F
- 3 Main Board And 3 Expansion Board Monitored Safety Inputs
- Use Up To 50 Remote Controls With On-Board Radio Receiver
- Reversing Sensor Reverses Gate When Obstruction Is Detected
- Homelink Compatible And UL Class: I, II, III, and IV
To Convert into a Solar Unit
The 40W33A, which includes (2) SP20W12V solar panels with mounting hardware, (2) K94-37236 solar adapter harness kits, and (2) A12330SGLPK 33Ah batteries.You may also need (2) K10-36183 battery trays.
| Name | LiftMaster Commercial Swing Gate Opener - 1.5HP, 24VDC, 120/240 VAC Single Phase, With Photo Eye - HDSW24UL |
|---|---|
| SKU | HDSW24UL |
| Alternate Part Number | HDSW24ULMC |
| Max Gate Length | 22 ft. |
| Max Gate Weight | 4500 lbs. |
| Cycle Speed | 13 - 36 sec. |
| Operator Duty Rating | Continuous Duty |
| Compatible Remotes | 50 Remotes |
| Motor | 24VDC Brushless Motor |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Horsepower | 1.5 HP |
| Code Type Compatibility | Security+ 2.0 |
| UL Usage Classification | I, II, III, IV |
| Manufacturer | LiftMaster |
| MyQ Compatibility | Yes |
| Price | $3,297.25 |
