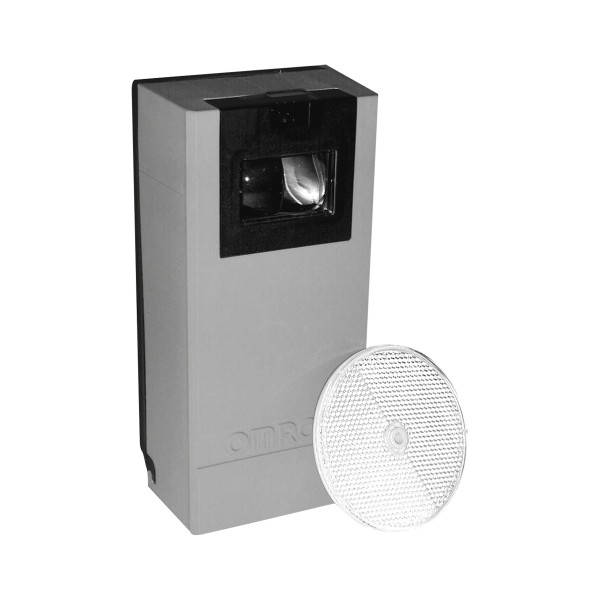

LiftMaster E3K Long-Range Photoelectric Reflective Sensor with Reflector & Hood (NEMA 4, 40 ft)
Details
LiftMaster E3K Long-Range Photoelectric Reflective Sensor with Reflector & Hood (NEMA 4, 40 ft)
The Omron E3K Photoelectric Sensor supports gate opener systems by detecting vehicles or obstructions across the gate path. A rectangular plastic body and terminal block connection simplify setup, and selectable Light-ON/Dark-ON operation with relay output allows flexible integration. The sensor includes a 3" reflector and hood to maintain alignment and minimize false triggers. Its 40-foot range and NEMA-rated housing ensure reliable outdoor performance.
Features:
- Easy to wire terminal strip
- Plug-In replaceable outputs
- Timer modules available
- Long-Range Detection
Specifications:
- Retroreflective detection
- 40ft Sensing Distance
- Terminal Block Connection
- NEMA 4 Platic Housing
- Light-ON/Dark-ON (Switch Selectable)
- DPDT 10 A Relay Output
- Input Voltage: 42 to 240 VAC, 24 to 240 VDC
| SKU | AOMRON |
|---|---|
| Product Type | Photo Eye |
| Input Voltage | 24 DC, 36 DC, 48 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Sensing Distance | 40' |
| Manufacturer | LiftMaster |
